Volkswagen T6.1 / T6 / T5 Transporter SWB (2003-Current) Slimline II 1/2 Roof Rack Kit
This 1156mm/45.5'' long 1/2 size Slimline II cargo carrying roof rack kit contains a Slimline II Tray, Wind Deflector, and 2 foot rails to mount the Slimline II Tray to your Volkswagen T6.1 / T6 / T5 Transporter. It easily installs using the existing factory mounting points. No drilling required. All Front Runner Rack Kits contain Installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller prep and 1 larger camp size table).All Front Runner Racks are backed by a Limited Lifetime Warranty*
KRVK005T - Volkswagen T5/T6 Transporter (2003-Current) Slimline II 1/2 Roof Rack Kit - by Front Runner
1 x FAVT001 - Volkswagen T6.1 / T6 / T5 Caravelle/Transporter Foot Rails - by Front Runner
1 x RRSTJ06 - Slimline II Tray - 1425mm(W) x 1156mm(L) - by Front Runner
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 29kg (63lbs)

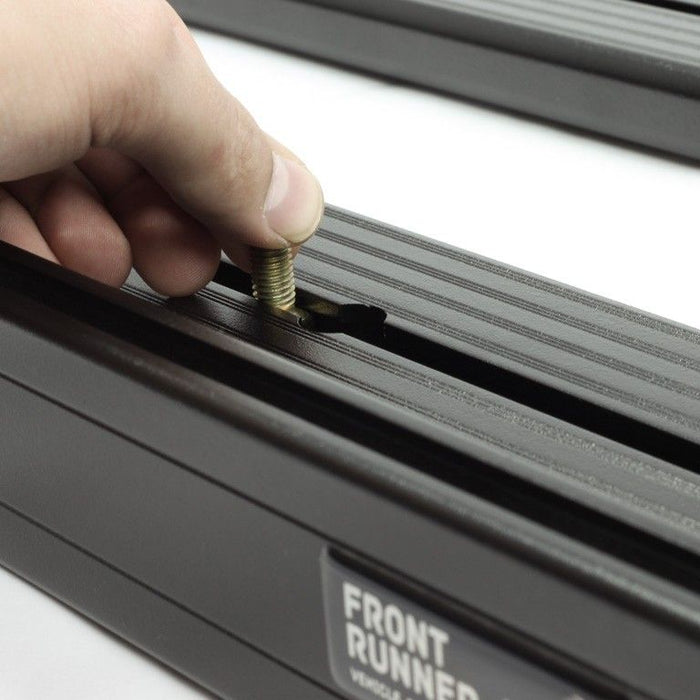

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width 620mm (24")
Length 1640mm (65")
Height 160mm (6")
Rack Height on vehicle
Height of the footrail is 106mm plus 50mm rack platform gives a total of 156mm
Weight 33.2kg (73.0lbs)
